Populated Swimming Pool Distribution Board

SKU: VBW8ASP

  • Populated Distribution Board
    • 1x 8 Way Surface Mount IP66 Board
    • 1x 32A Double Pole Isolator Switch
    • 1x 20A 3kA Single Pole MCB
    • 1x 10A 3kA Single Pole MCB
    • 1x Digital Programmable Timer
  • IP66 Waterproof & Dustproof
  • IK08 Rating
  • Fire Resistant to 850°C for 30 seconds
  • Digital Timer
    • Resistive Load - 30A / 4400W
    • Repeat programs with 16 ON/OFF settings, 18 pulse settings, and a manual ON/OFF switch

R 1 020.00 ex. VAT R 1 173.00 in. VAT

Details

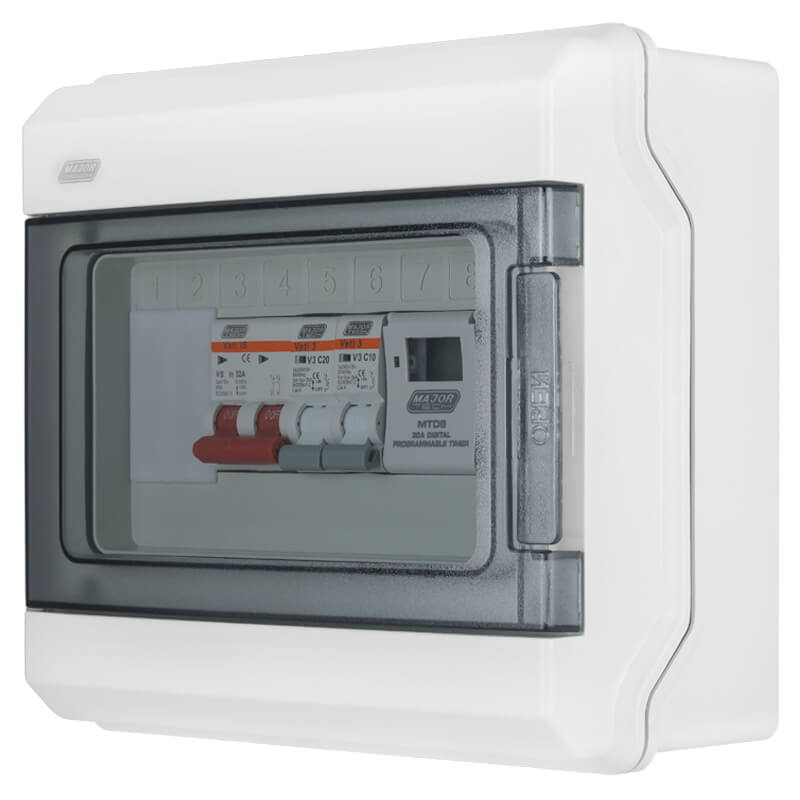

The VBW8ASP is a populated IP66-rated distribution board designed for outdoor and poolside installations. It includes a 32A double pole isolator, 10A and 20A single pole MCBs, and the MTD8 digital timer. The MTD8 offers advanced weekly programming with 16 ON/OFF schedules, 18 pulse settings, and a manual override button for full control. It features a lithium battery backup to preserve settings during power outages and supports multiple operating modes including AUTO ON, AUTO OFF, and manual ON/OFF. Built with high-quality components and a durable, weatherproof distribution board, the VBW8ASP ensures long-lasting, dependable performance in demanding environments. All electrical equipment is required to be installed by a qualified electrical professional.

Specifications:

Function

Range

Dimensions

200 x 219 x 105mm

Mount

Surface

Knock Outs

Top

Bottom



2xØ20mm & 2xØ32mm

2xØ20mm & 2xØ32mm

IP Rating

IP66

IK Rating

IK08

Fire Resistant

Up to 850°C / 30s

Material

Enclosure

Earth/Neutral Bar



High Quality Polycarbonate Plastic

Copper

Components

MTD8

VS2P32

V3C1P20

V3C1P10

VBW8S



30A Digital Programmable Timer

32A Double Pole Isolator Switch

20A 3kA Single Pole MCB

10A 3kA Single Pole MCB

8-Way Surface Mount IP66 Board

Accessories:

  • 1 x VBW8S - 8 Way Surface Mount IP66 Board
  • 1 x VS2P32 - 32A Double Pole Isolator Switch
  • 1 x V3C1P20 - 20A 3kA Single Pole MCB
  • 1 x V3C1P10 - 10A 3kA Single Pole MCB
  • 1 x MTD8 - Digital Programmable Timer
