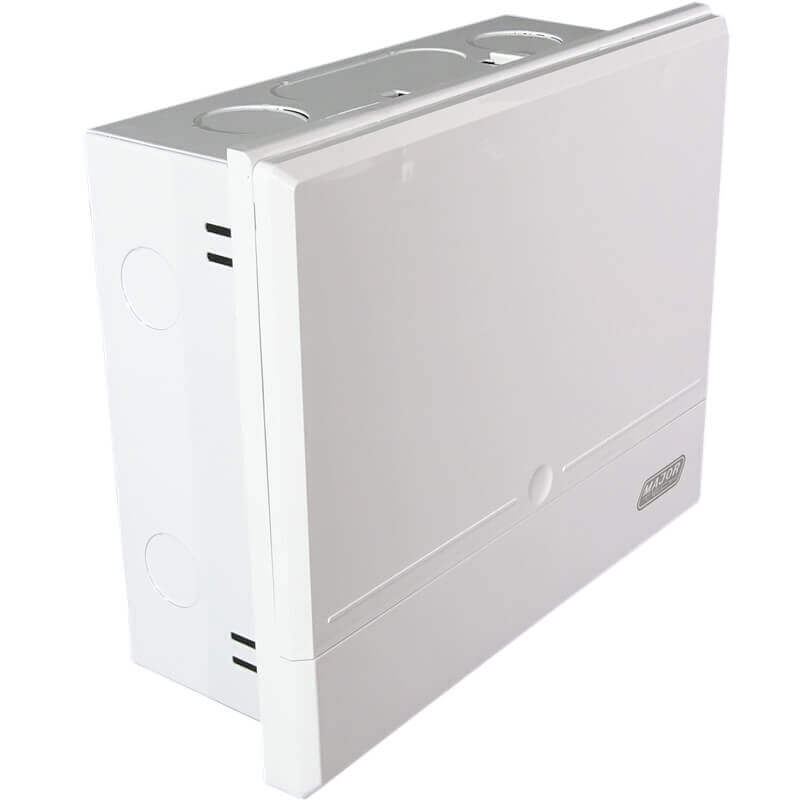

12 Way Distribution Board (Flush Mount)

Features :

• Overall Dimensions : 323mm x 210mm x 97mm
• Wall Box Size : 292mm x 192mm x 77mm
• Heavy duty powder coated iron tray
• Circuit labels included
• Adjustable Din rail & front cover to ensure level installation
• Tested and approved to EN60947-1
• CE Certified
• Din rail connection according to EN50022
• Supplied with earth / neutral bar
• 4 x 20mm knock outs, 2 x 30mm knock outs, 2 x 75mm (L) x 30mm(H) knock outs & 1 x 200mm(L) x 25mm(H) knock out
• Flat elegant design
• MCB’s are C Curve thermal magnetic
• MCB’s are tested and approved to IEC60947-2 +VC8036 +SANS556-1
• RCCB has been tested and approved to VC8035 +SANS 556-2-3 +IEC61008-1

Components :

• 1 x VBM1114SM (11-14 Surface Mount Distribution Board)
• 1 x V3C1P50 (50A 3Ka Single Pole MCB)
• 1 x VE2P63 (63A Double Pole RCCB)
• 1 x V3C1P40 (40A 3Ka Single Pole MCB)
• 3 x V3C1P20 (20A 3kA Single Pole MCB)
• 2 x V3C1P10 (10A 3kA Single Pole MCB)
