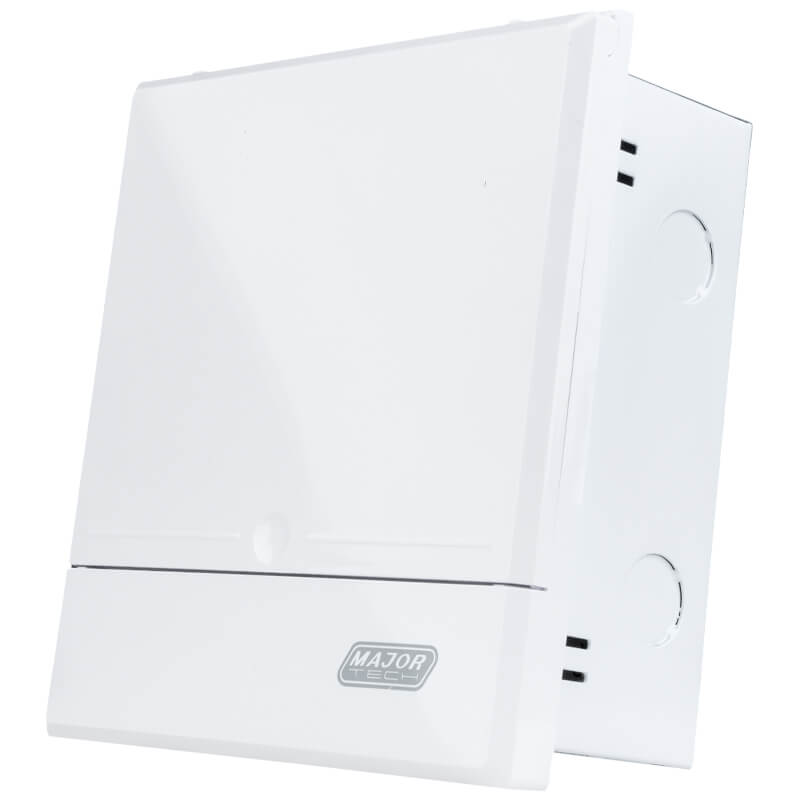

5-7 Way Flush Mount DB Board

SKU: VBM57FL

  • Adjustable Cover & DIN Rail for an Easy & Level Installation
  • Effortless Push-To-Open Mechanism
  • Metal Tray Provides Strength & Durability
  • Label Circuits Clearly and Neatly for Easy Identification
  • Flush Mount
  • 5-7 Way DB Box
  • Adjustable Din Rail
  • 6X 20mm & 4X 25mm & 2X 32mm Knock out Sizes
  • 192mm X 167mm X 77mm Wall Box Size
  • Metal Tray, Plastic Cover, Copper Bar

R 199.00 ex. VAT R 228.85 in. VAT

Details

The VBM57FL is an IP20-rated 5-7 Way Flush Mount distribution board, with a compact 1-row height, it can accommodate up to 7
individual 18mm modules, providing an efficient and reliable electrical distribution solution for your space. Crafted from highquality,
powder-coated iron, the durable metal tray ensures strength and longevity.
Conforming to South Africa compliance standards IEC61439 and IEC61000, the VBM57FL distribution board is equipped with an
Earth & Neutral Bar, offering enhanced safety and reliability in electrical installations. The adjustable DIN rail and front cover
simplify the installation process, ensuring a level and secure setup. Additionally, included distribution board labels make circuit
identification easy, helping to maintain a tidy and organized electrical system.
This VBM57FL distribution board is the ideal choice for those seeking a robust, efficient, and organised electrical solution.

Specifications:

Function

Range

Dimensions



Overall

210 x 196 x 97mm

Wall

192 x 167 x 77mm

Knock Outs



Top

2x 20mm & 2x 32mm

Bottom

4x 20mm

Right Side

2x 25mm

Left Side

2x 25mm

Material



Cover

High Quality Polycarbonate Plastic (PC)

Tray

Metal for increased strength and durability

Earth/Neutral Bar

Copper

IP Rating

IP20

Warranty
