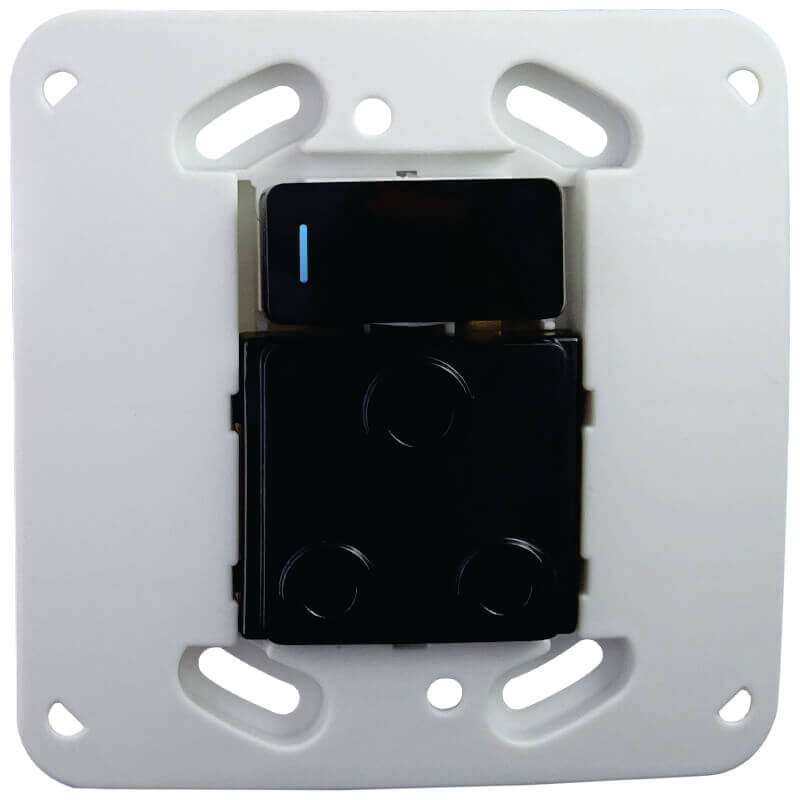

The 100mm x 100mm (4×4) monoblock socket outlet has been tested and approved to the required standard of IEC60884-1 & IEC60884-2-3 in conjunction with SANS164-0 & SANS164-1.
The socket outlet has also been issued with an LOA (Letter of Authority) from the NRCS (National Regulator for Compulsory Specifications) allowing for the sale of the product in South Africa.
The socket outlet includes a blue indicator light in order to practically identify if the power is on and aesthetically to add a little flair to the installation. The socket
outlet is rated at 16A, 250V and is thus able to handle any load drawing a maximum of up to 16A. The contacts are made from high quality copper to ensure the safest
connection by improving conductivity and therefore reducing heat which is caused due to a higher resistance from other accepted materials such as brass.
The socket is made from a mix of high quality plastics including flame retardant polycarbonate for an attractive finish and durable finish and the back is made from flame
retardant polypropylene to ensure strength and slightly more flexibility to assist if wall boxes are not in straight
V6208 cover plates
Flame retardant polycarbonate and polypropylene mix
16AX, 250V AC
