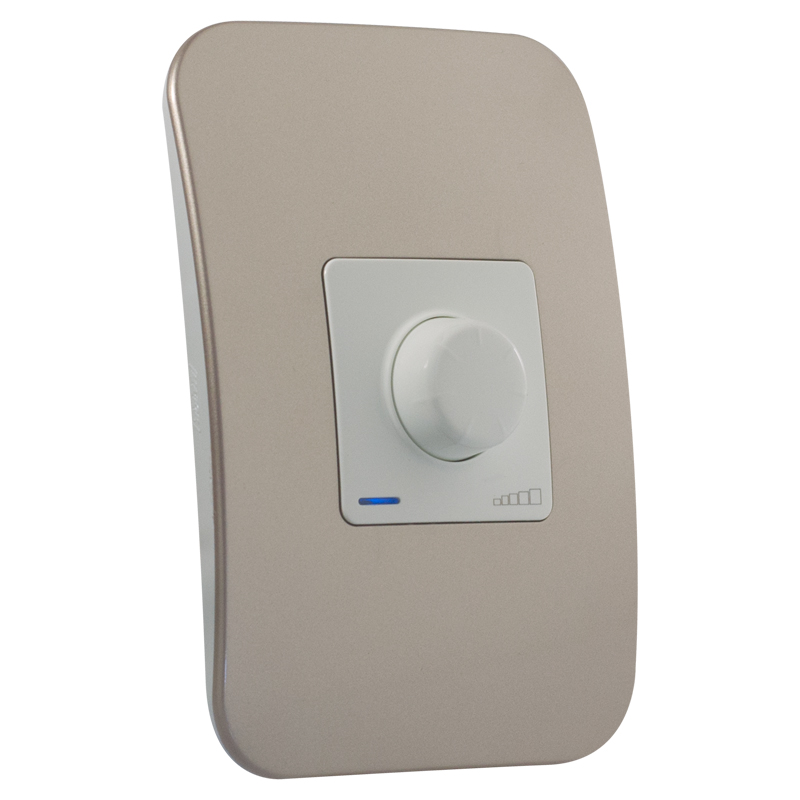

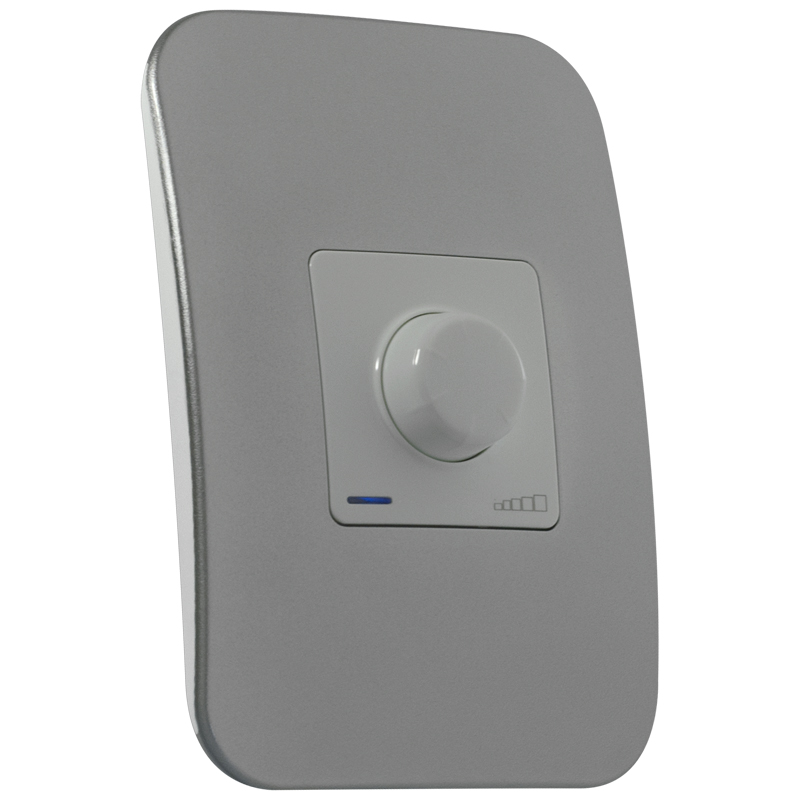

Rotary Dimmer with Locator
R516,35
Features :
- 400W Universal Rotary Dimmer Complete with Cover
- 100mm x 50mm
- Dims most dimmable lights (including LEDs & incandescent lamps)
- Major Tech suggest using our range of dimmable lamps to ensure compatibility
- Tested and approved to IEC60669-1 & IEC60669-2-1
- Comes complete with fixing frame and cover plate
- Available with an array of different colour cover options
- Includes a blue pilot light to easily find in the dark
- Uses trailing edge technology
- Compatible with wirewound and most electronic transformers
- Flexible casing clips to easily remove module from fixing frame
Description
The series of assembled dimmers has been created to simplify the ordering process and to help the customer see exactly what they are buying before they actually make the final decision. This combination includes a dimmer module and comes complete with the fixing frame and cover plate. The rotary dimmer can be used on most types of dimmable LEDs and all incandescent lamps. Due to different technology used in different brands of LEDs, Major Tech can only guarantee compatibility with all of Major Techs dimmable LEDs and any brand of incandescent lamps.
The rotary dimmer has a click on type switching in order that the dimming starts from very low light and doesnt suddenly have very bright light which could have been set when the dimmer was previously used. The dimmer includes a pilot light to easily find it in the dark. Dimming is controlled by rotating the dimmer knob in a clockwise direction until the desired light level is set. In order to reduce the light intensity or turn off the dimmer the knob must be turned in an anticlockwise direction. The dimmer uses trailing edge technology.
Dims all dimmable lamps including LEDs (200W Max) – Major Tech can’t guarantee compatibility unless using Major Tech lamps.
Additional information
Conductive Material: | Electronic PCB Control & coper with silver tip contact |
---|---|
Plastic Type: | Flame retardant polycarbonate |
Product Rating: | 400W (incandescent) or 200W (LED) |
Terminal Construction: | Terminal connection |
Colour | Bronze, Gun Metal, Silver |
