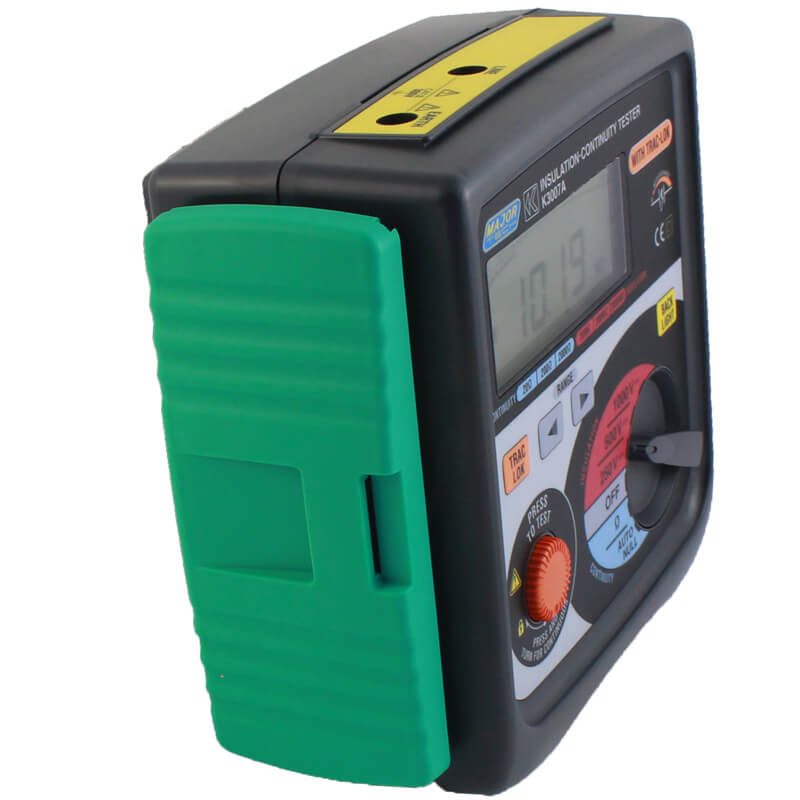

Intrinsically Safe K3007

SKU: K3007IS

Three test ranges 250V-500V-1000V
Auto null function
Trac-Lok mode to extend battery life by up to 400%
Automatic discharge after test
Main bargraph indication of insulation resistance, sub bargraph indicates output voltage
Displays the value of external AC voltage along with flashing symbol and buzzer
Lock down Test Button for continuous use
1mA output current on insulation test
200mA short circuit on continuity range
EL Backlight for dimly lit areas

Quantity

R 10 725.00 ex. VAT R 12 333.75 in. VAT

Request a Quote

Add to wishlist

Details

Major Tech’s range of insulation testers are ideal for mining, industry and electricians applications. The K3007IS has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in both models is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. The top of the range K3007IS is equipped with Trac-Lok circuits that improve battery life considerably, thus saving the user money. Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas.

Specifications:

Function	Range	Resolution	Accuracy
AC voltage	0V - 600V	1V	± (5.0% + 3 Digits)
Resistance	20Ω - 2000Ω	0.01Ω	± (1.5%+ 5 Digits)
Insulation resistance 250V	250V	0 - 19.99MΩ	± (1.5% + 5 Digits)
Insulation resistance 500V	500V	0 - 199.9MΩ	± (1.5% + 5 Digits)
Insulation resistance 1000V	1000V	0 - 1999MΩ	± (10% + 3 Digits)
Short circuit current	1.5mA
Overrange indication	Yes
Digital Display	LCD Display
Continuity	Yes
Trac loc	Yes
Auto discharge	Yes
Bargraph	Yes
Back Light	Yes
Enclosure	Moulded case IP54
Low battery indication	Yes
Power source	6 x R6
Weight	900g
Dimensions	185 x 167 x 89mm
Safety Specs	IEC61010-1 CatIII 300V
