High Voltage Proximity Detector

SKU: MT275

  • Non-contact AC voltage detection for enhanced operator safety
  • Detects voltages from 380V AC to 500kV AC
  • 8 selectable voltage ranges for low and high voltage applications
  • Bright LED visual and audible voltage indication
  • Compatible with insulated hot sticks and link sticks
  • Suitable for live cable detection and fault location in open cables, overhead lines, Substations and HV Cable Testing.
  • Detects residual and induced voltages
  • IP65-rated dustproof and waterproof housing
  • Rugged shock-resistant construction
  • Built-in self-test function Automatic zero adjustment for reliable detection
  • Lock-down test button for continuous operation
  • Strong anti-interference performance for dependable detection
  • Compact, lightweight and easy to transport
  • Comply with EN 61326-1, CISPR 11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8

R 6 415.00 ex. VAT R 7 377.25 in. VAT
Add to Cart

Details

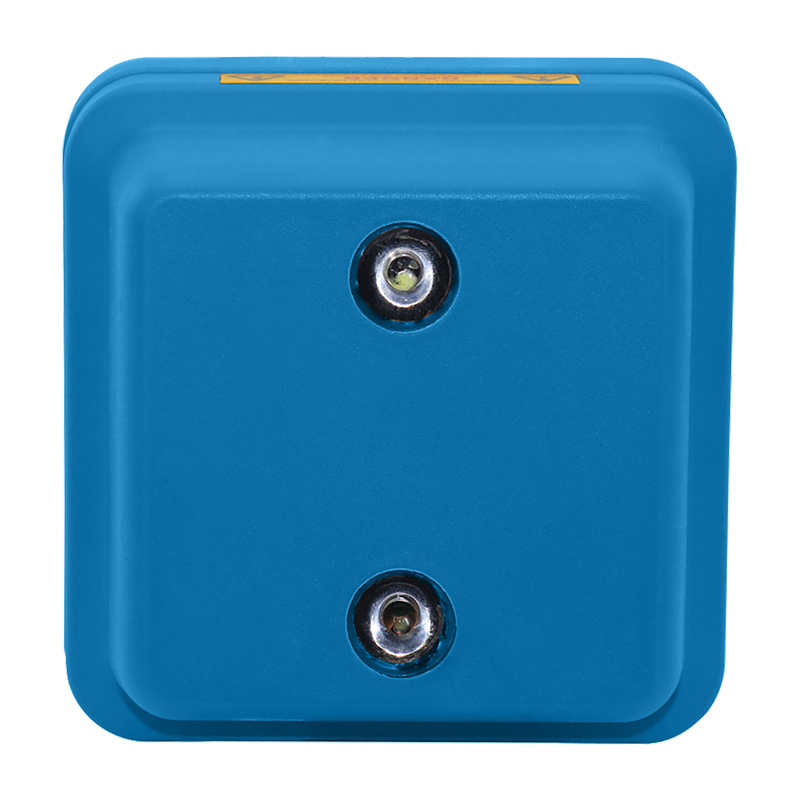

The MT275 is a non-contact high-voltage proximity detector designed for safe and reliable voltage detection from 380V AC to 500kV AC, with eight selectable ranges. It uses an internal sensor plate to detect the electric field around live conductors and features audible and visual alarms, plus a selftest function.Built with an IP65-rated, shock-resistant enclosure, the MT275 is suited to harsh environments and can be used with insulated link sticks or hot sticks for added safety. Ideal for live voltage detection, cable fault finding, overhead line tracing, and residual or induced voltage testing, it offers high accuracy, stable performance, strong resistance to interference, and easy portability.

Specifications:

Function  Range
Non-Contact Voltage (NCV) Yes
AC Voltage380 380V, 6KV, 10kV, 27.5kV, 35kV, 110kV, 220kV, 500kV
Frequency 40 – 70Hz
Voltage Detector Visual Hi bright red LED
Voltage Detector Audible High noise level buzzer
Power On Indicator Self-test selection
Flash Light Yes
Enclosure Moulded IP65
Batteries 3 x C
Dimensions 255 x Ø96 x Ø45mm
Weight 531g
Safety Specs EN61326-1 CISPR 11, EN61000-4-2, EN61000-4-3, EN61000-4-8

Safety Rating

Warranty

Accessories:

  • Carrying Case
  • 3 x C Batteries
  • Instruction Manual
