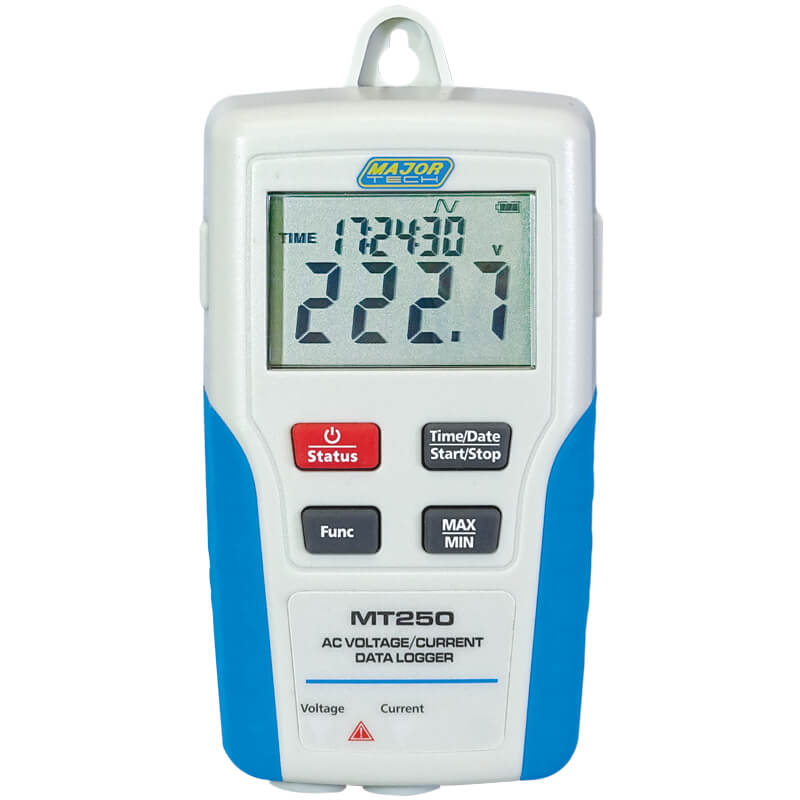

AC Voltage & Current Data Logger

SKU: MT250

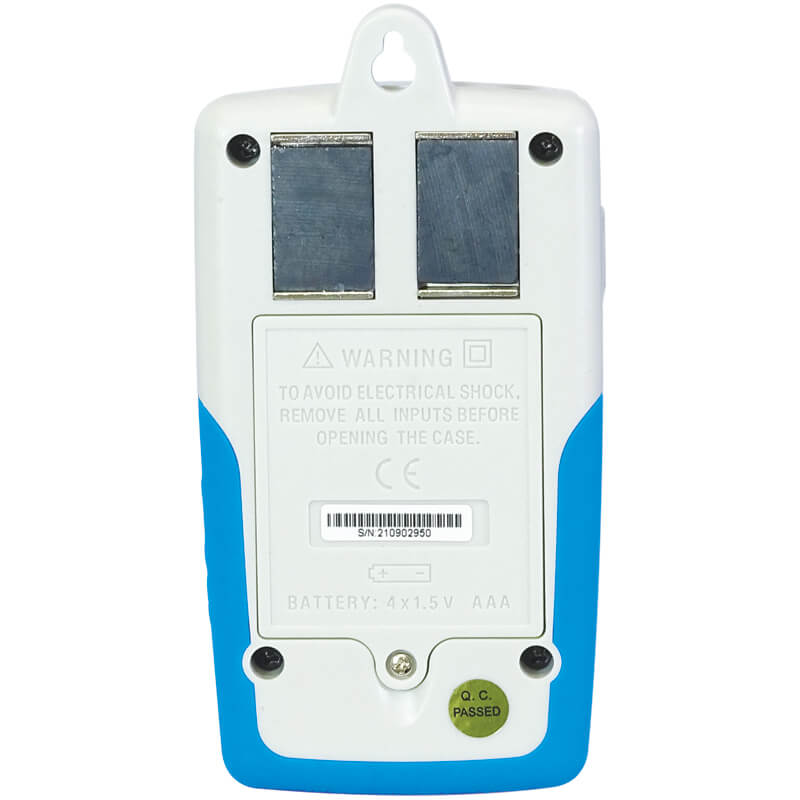

Magnetic back plate for easy attachment to metal surfaces
Each channel can record up to 50022 data
Date and Time Stamp
Graphical and Printed Text information
Battery or AC power supply

Quantity

Add to wishlist

Details

The MT250 is designed for easy use in recording AC Voltage and Current. The Logger can be programmed simply via USB interface from your PC. 1 second rapid sampling rate variable to 24 hours. LCD display of Voltage or Current for quick reference checks.

Specifications:

Function	Range	Resolution	Accuracy
Voltage (RMS)	6 – 600.0V	0.1V	±(2% ±1V)
Current (RMS)	1A – 200A	0.1A	100mA ±(2.0% ± 0.9%) f.s. +accuracy of sensor
			Trigger 100mA ±(3.5% ± 2.2%) f.s. + accuracy of sensor
			Capture PQA 100mA ±(3.0% ± 1.7%) f.s. + accuracy of sensor
Crest Factor	2.5 or less: RMS (sine) +2% +1%f.s. 95% or less of each range
Allowable Input	50/60Hz, 10% or more of the range Ch1
Display Range	0-105% of each range
Frequency Range	40 – 1KHz
Wiring Connections	2 Channel
Measurements and Parameters	Voltage, Current
Sampling Speed	1second to 24Hour
Internal Memory	100,044 points current or voltage, 50,022 points channel current and voltage

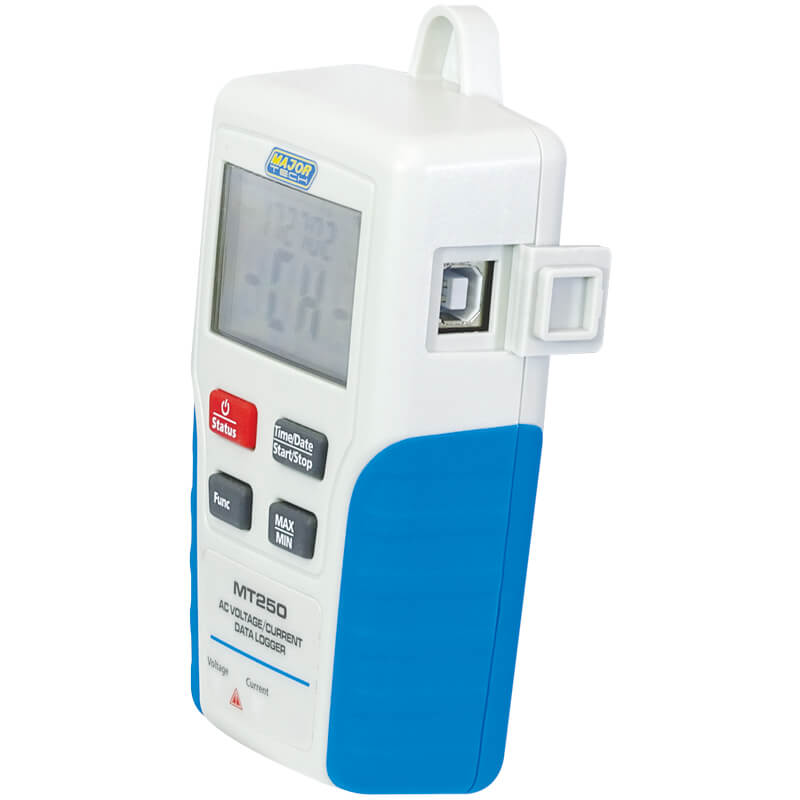

PC Communication	USB
Display Range	0-105% of each range
Display Update Period	Real time
Enclosure	Over Moulded casing
Power Source AC	External DC9V (special AC Adapter)

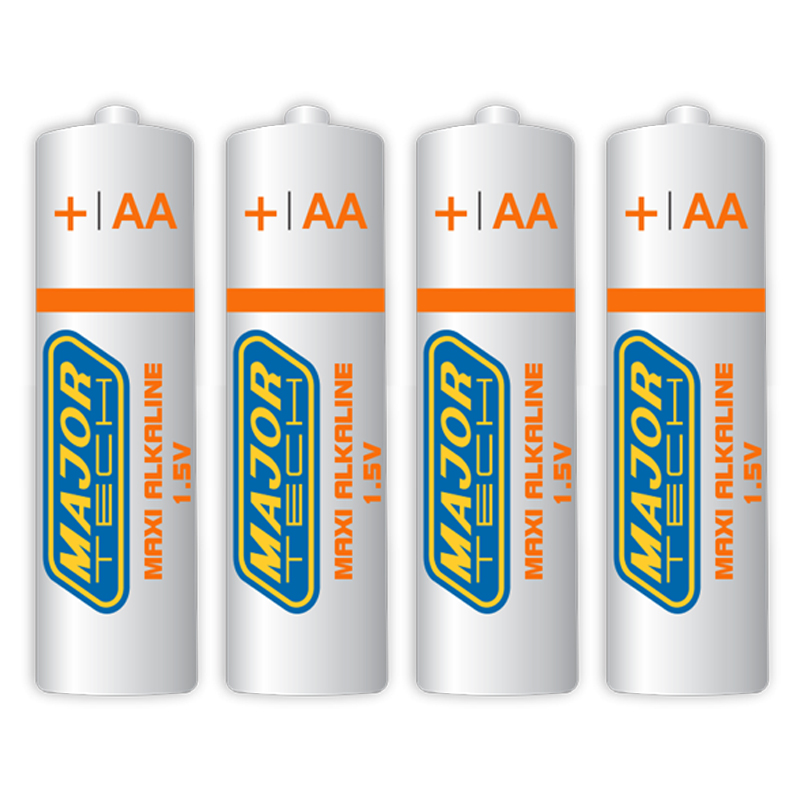

Power Source DC	4 x R6P
Weight	248g
Dimensions	114 x 63 x 34mm
Safety Specs	IEC 61010-1 Cat III 300V

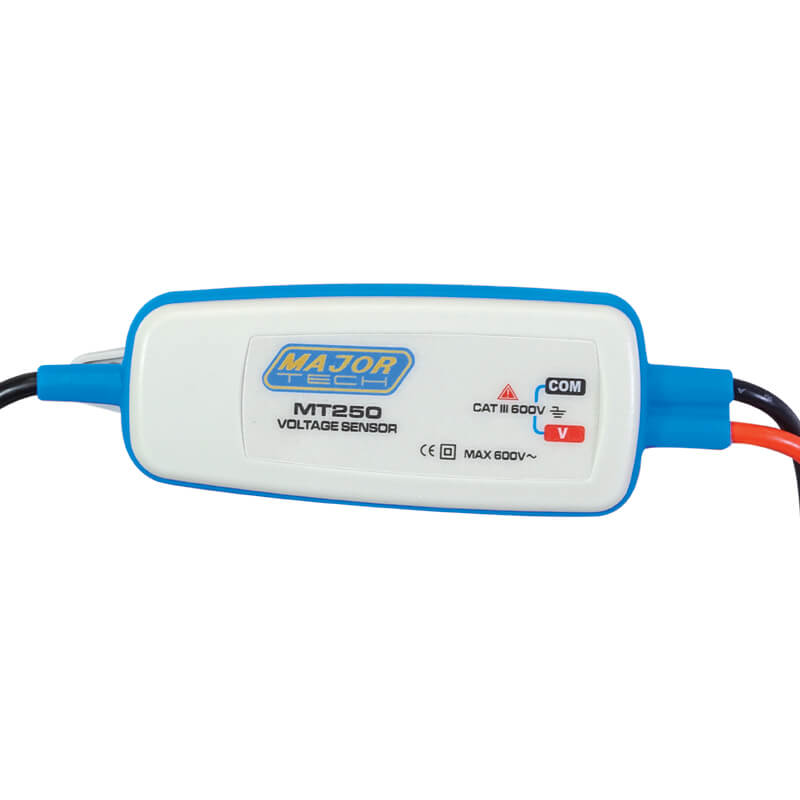

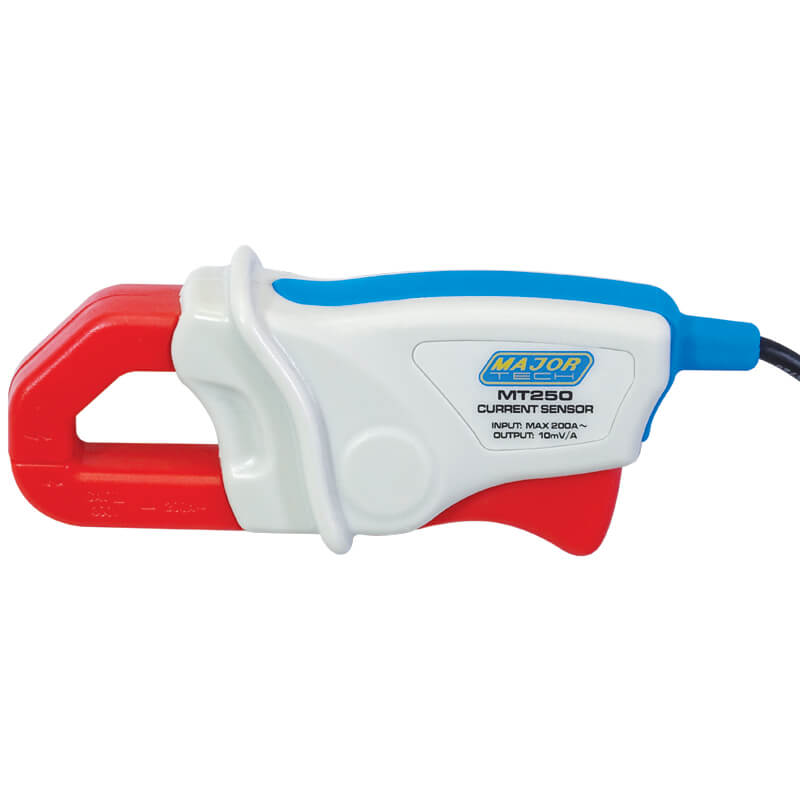

Included Accessories	USB Cable, Voltage lead, Current Clamp, Manual, 4 x R6P Batteries
