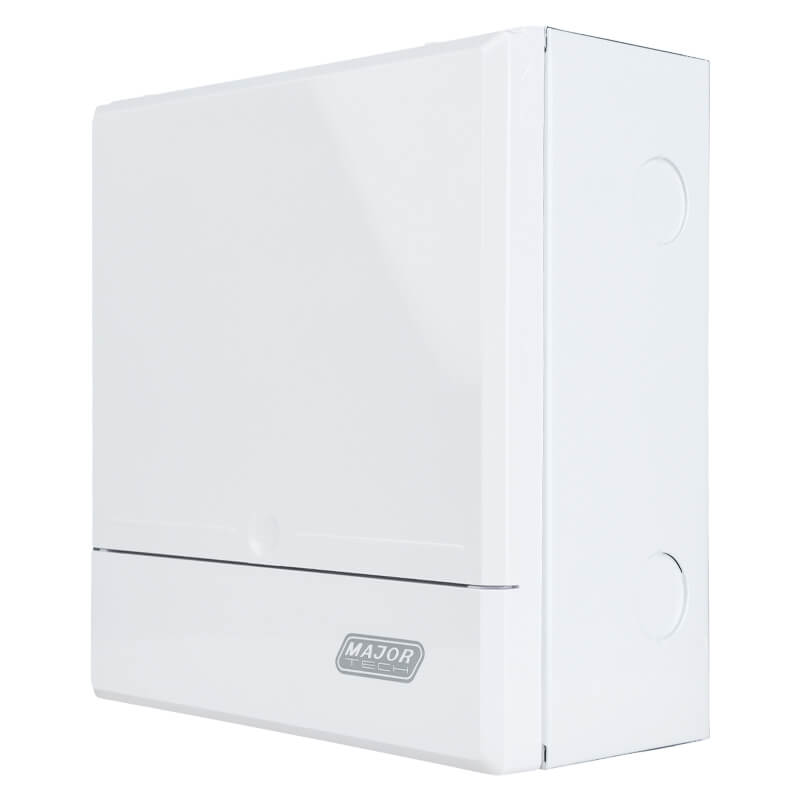

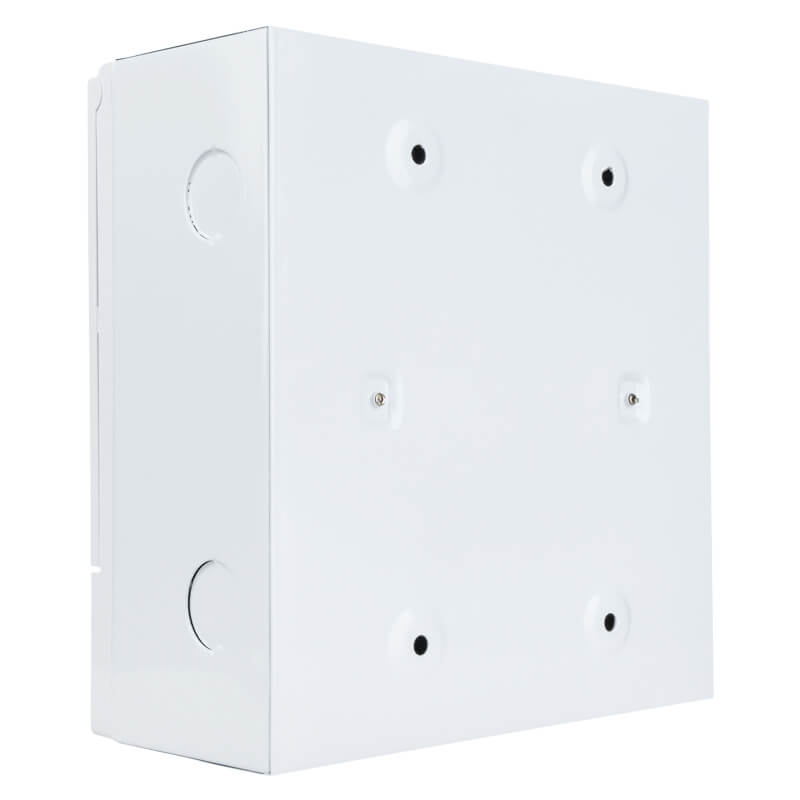

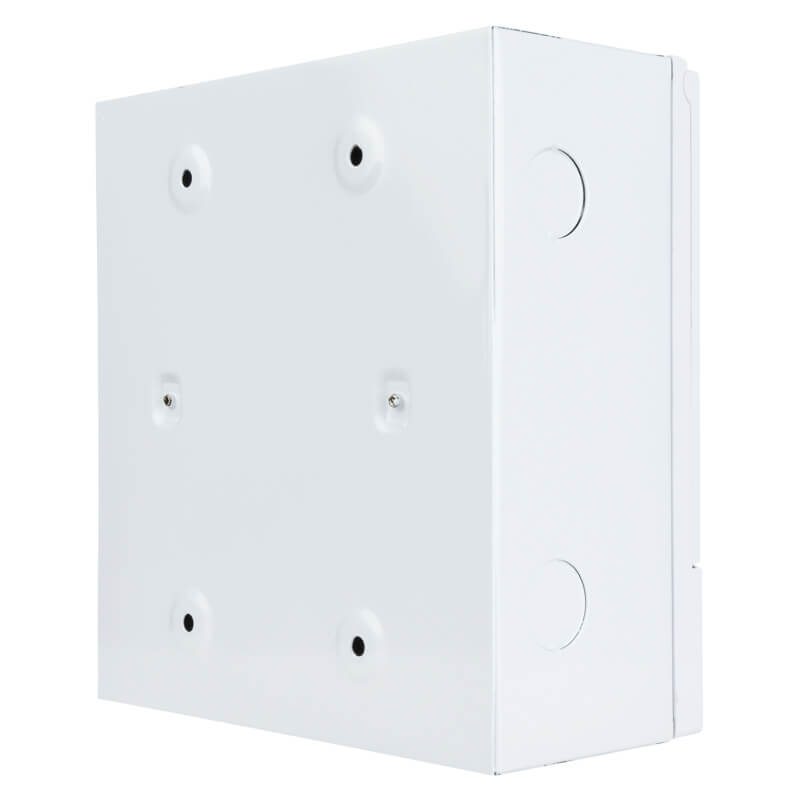

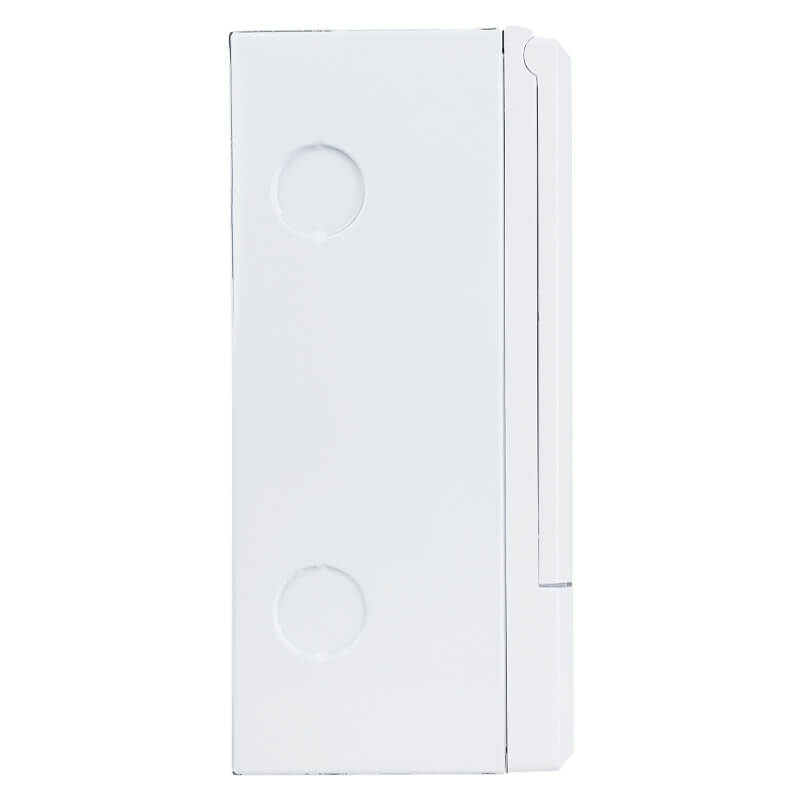

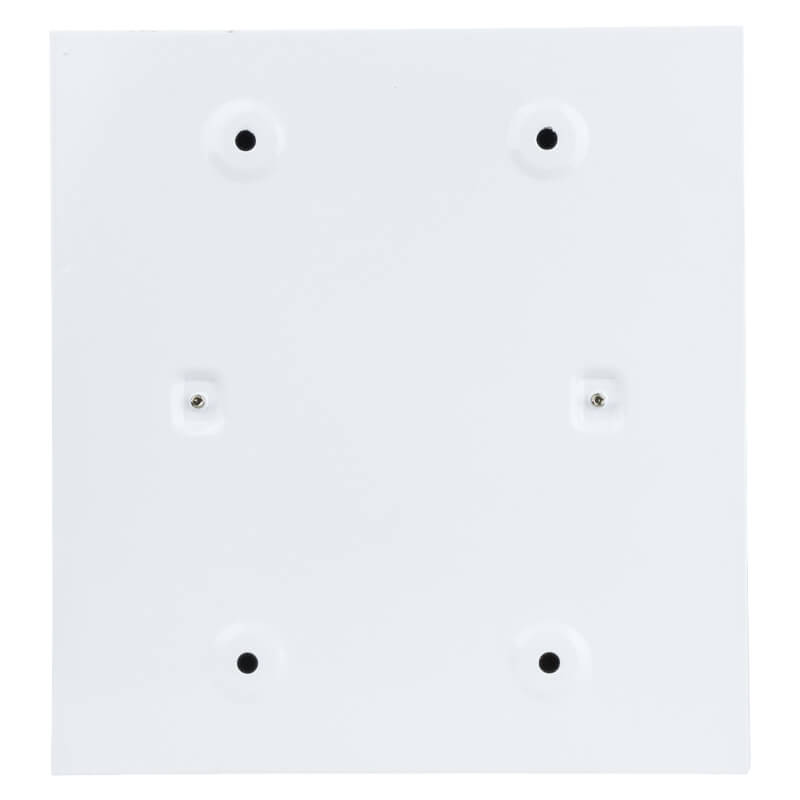

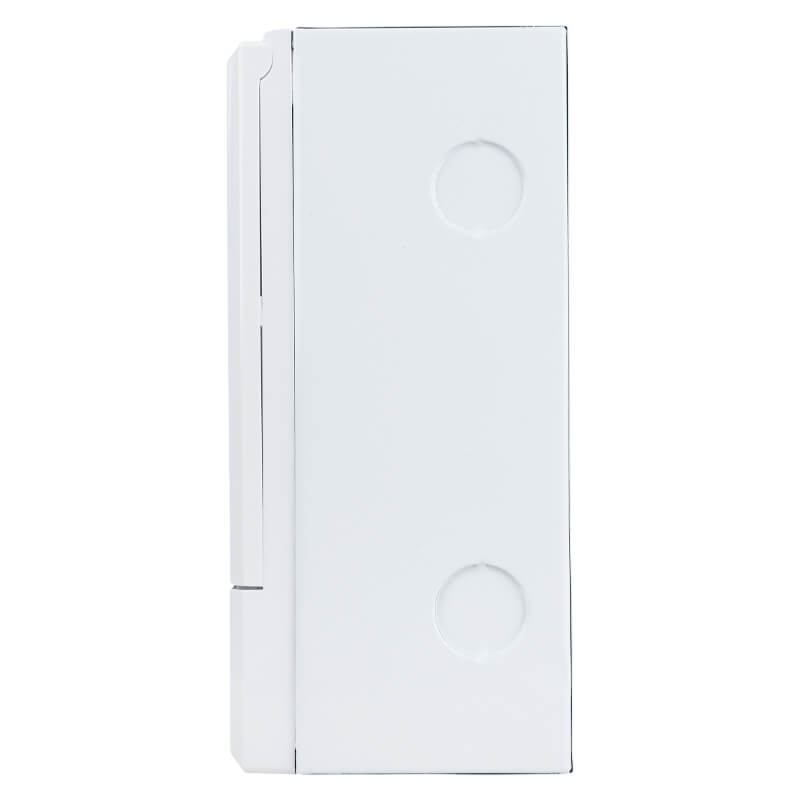

5-7 Way Surface Mount DB Board

SKU: VBM57SM

  • Adjustable Cover & DIN Rail for an Easy & Level Installation
  • Effortless Push-To-Open Mechanism
  • Metal Tray Provides Strength & Durability
  • Label Circuits Clearly and Neatly for Easy Identification
  • Surface Mount
  • 5-7 Way DB Box
  • Adjustable Din Rail
  • 8X 20mm & 4X 25mm Knock out Sizes
  • 210mm X 196mm X 97mm Size
  • Metal Tray, Plastic Cover, Copper Bar

R 210.00 ex. VAT R 241.50 in. VAT

Details

The VBM57SM is an IP20-rated 5-7 Way Surface Mount distribution board, with a compact 1-row height, it can accommodate up to 7 individual 18mm modules, providing an efficient and reliable electrical distribution solution for your space. Crafted from high-quality, powder-coated iron, the durable metal tray ensures strength and longevity. Conforming to South Africa compliance standards IEC61439 and IEC61000, the VBM57SM distribution board is equipped with an Earth & Neutral Bar, offering enhanced safety and reliability in electrical installations. The adjustable DIN rail and front cover simplify the installation process, ensuring a level and secure setup. Additionally, included distribution board
labels make circuit identification easy, helping to maintain a tidy and organized electrical system.
This VBM57SM distribution board is the ideal choice for those seeking a robust, efficient, and organised electrical solution.

Specifications:

Function

Range

Dimensions

210 x 196 x 97mm

Knock Outs



Top

4x 20mm

Bottom

4x 20mm

Right Side

2x 25mm

Left Side

2x 25mm

Material



Cover

High Quality Polycarbonate Plastic (PC)

Tray

Metal for increased strength and durability

Earth/Neutral Bar

Copper

IP Rating

IP20

Warranty
