360° True Presence Microwave Sensor - IP65

SKU: MS371

The presence sensor is designed to detect even the slightest movements, including subtle actions like breathing or a beating heart, ensuring accurate occupancy sensing even when a person remains still.
3 – 2000 LUX (Adjustable)

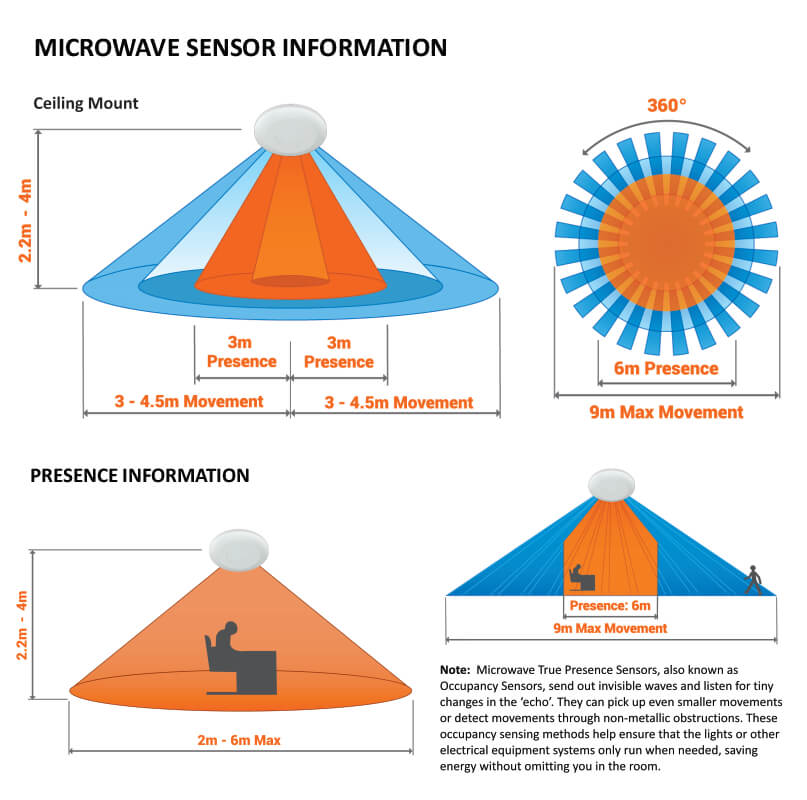

360° Detection Area
Detection Distance
- 6m Presence
- 9m Movement
Automatically turns on lights when motion and body heat is detected

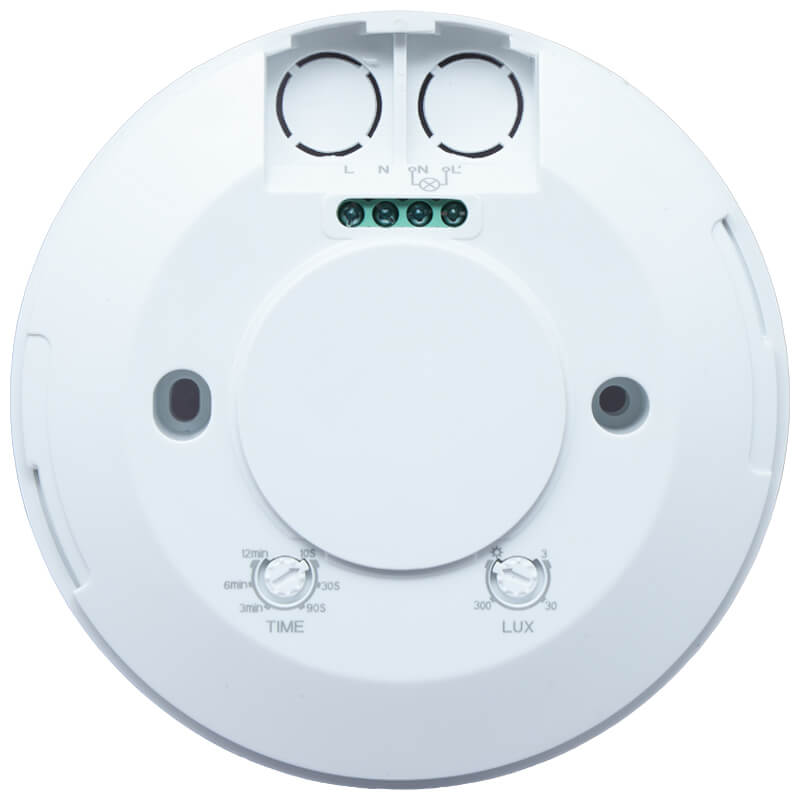

Time-delay and ambient light adjustment
Identify day and night automatically
Rated Load
- 2000W (Incandescent Lamps)
- 1000W (LED / CFL)
IP65 Rating - Outdoor & Indoor Installations

Quantity

R 629.00 ex. VAT R 723.35 in. VAT

Add to Cart

Add to wishlist

Details

The MS371 incorporates advanced technology which allows the sensor to pick up the smallest of movements including typing on a keyboard or breathing. The MS371 is a True Presence Microwave Sensor, also known as an Occupancy Sensor, which allows one to automatically turn on lights or electrical devices within the sensors rated load. This true presence microwave sensor detects through obstacles like doors, glass panels and thin walls, with a 360° detection range and adjustable settings. Easily integrated into new or existing installations. Its IP65 rating is limited to flush mount indoor use and installation must be done by a qualified electrician.

Specifications:

Function	Range
Detection Area	360°
Detection Distance Presence Movement	6m Max 9m Max
Detection Motion Speed	Presence
HF System	24GHz CW Radar, ISM Band
Ambient Light	<3 to 2000 Lux (Adjustable)
Installation Height	2m - 4m
Voltage	220 to 240V AC
Power Frequency	50/60Hz
Rated Load Incandescent LED / CFL	2000W 1000W
Time Delay	10 sec (±3 sec) to 12 min (±2 min)
Power Consumption	<10mW
Mounting	Ceiling Mount
Hole Cut Size	Ø63mm - Ø66mm
Working Temperature	-20°C to 40°C
Working Humidity	<93% RH
IP Rating	IP65 (Outdoor & Indoor installation)
Standards	IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1
