360° PIR Motion Sensor - IP65

SKU: PIR49

3 – 2000 LUX (Adjustable)
240° Detection Area
14m Detection Distance
Automatically turns on lights when motion and body heat is detected
Time-delay and ambient light adjustment
Identify day and night automatically
Rated Load
- 2000W (Incandescent Lamps)
- 1000W (LED / CFL)
IP65 Rating - Outdoor & Indoor Installations

Quantity

R 469.00 ex. VAT R 539.35 in. VAT

Add to Cart

Add to wishlist

Details

The PIR49 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 240° detection range and adjustable settings for time, Lux level and sensitivity, easily integrated into new or existing installations. With an IP65 rating, the sensor is intended for indoor or outdoor installations. Installation must be done by a qualified electrician.

Specifications:

Function	Range

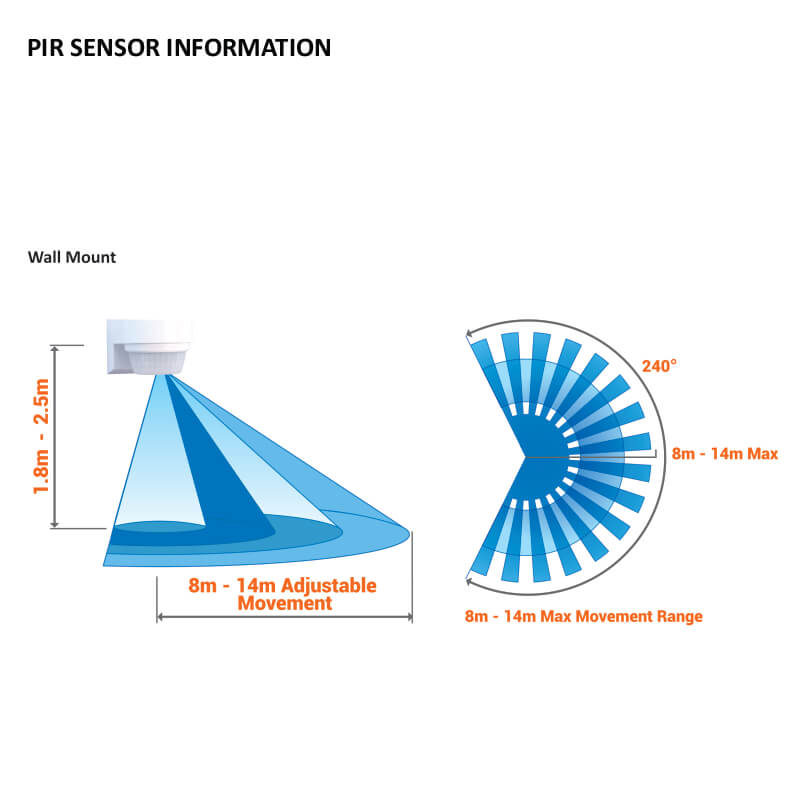

Detection Area	240°
Detection Distance	8m - 14m (Adjustable) <24°C
Detection Motion Speed	0.6 to 1.5m/s
Ambient Light	<3 to 2000 Lux (Adjustable)
Installation Height	1.8m – 2.5m
Voltage	220 to 240V AC
Power Frequency	50/60Hz
Rated Load Incandescent LED / CFL	2000W 1000W
Time Delay	10 sec (±3 sec) to 15 min (±2 min)
Power Consumption	<0.5W
Mounting	Wall Mount
Working Temperature	-20°C to 40°C
Working Humidity	<93% RH
IP Rating	IP65 (Outdoor & Indoor installation)
Standards	IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1
