30-36 Way Flush Mount DB Board

SKU: VBM3036FL

  • Adjustable Cover & DIN Rail for an Easy & Level Installation
  • Effortless Push-To-Open Mechanism
  • Metal Tray Provides Strength & Durability
  • Label Circuits Clearly and Neatly for Easy Identification
  • Flush Mount
  • 30-36 Way DB Box
  • Adjustable Din Rail
  • 6 X 20mm & 8 X 25mm & 8 X 32mm Knock out Sizes
  • 364mm X 397mm X 77mm Size

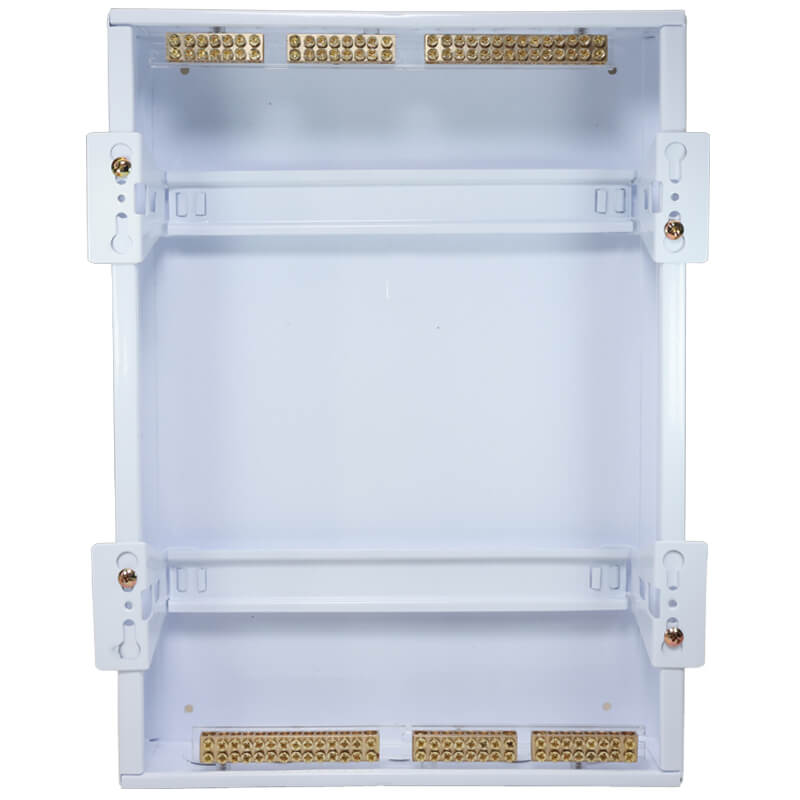

  • Metal Tray, Plastic Cover, Copper Bar

R 399.00 ex. VAT R 458.85 in. VAT

Details

The VBM3036FL is an IP20-rated 30-36 Way Flash-Mount distribution board, with a compact 2-row height, it can accommodate up to 36 individual 18mm modules, providing an efficient and reliable electrical distribution solution for your space. Crafted from high-quality, powder-coated iron, the durable metal tray ensures strength and longevity. Conforming to South Africa compliance standards IEC61439 and IEC61000, the VBM3036FL distribution board is equipped with an Earth & Neutral Bar, offering enhanced safety and reliability in electrical installations. The adjustable DIN rail and front cover simplify the installation process, ensuring a level and secure setup. Additionally, included distribution board labels make circuit identification easy, helping to maintain a tidy and organised electrical system. This VBM3036FL distribution board is the ideal choice for those seeking a robust, efficient, and organised electrical solution.

Specifications:

Function

Range

Dimensions



Overall

394 x 418 x 97mm

Wall

364 x 397 x 77mm

Knock Outs



Top

3x 20mm, 2x 25mm & 4x 32mm

Bottom

3x 20mm, 2x 25mm & 4x 32mm

Right Side

2x 25mm

Left Side

2x 25mm

Material



Cover

High Quality Polycarbonate Plastic (PC)

Tray

Metal for increased strength and durability

Earth/Neutral Bar

Copper

IP Rating

IP20



Warranty
