11-14 Way Surface Mount DB Board

SKU: VBM1114SM

  • Adjustable Cover & DIN Rail for an Easy & Level Installation
  • Effortless Push-To-Open Mechanism
  • Metal Tray Provides Strength & Durability
  • Label Circuits Clearly and Neatly for Easy Identification
  • Surface Mount
  • 11-14 Way DB Box
  • Adjustable Din Rail
  • 10X20mm & 8X25mm Knock out Sizes
  • 323mm X 210mm X 97mm Size
  • Metal Tray, Plastic Cover, Copper Bar

R 255.00 ex. VAT R 293.25 in. VAT

Details

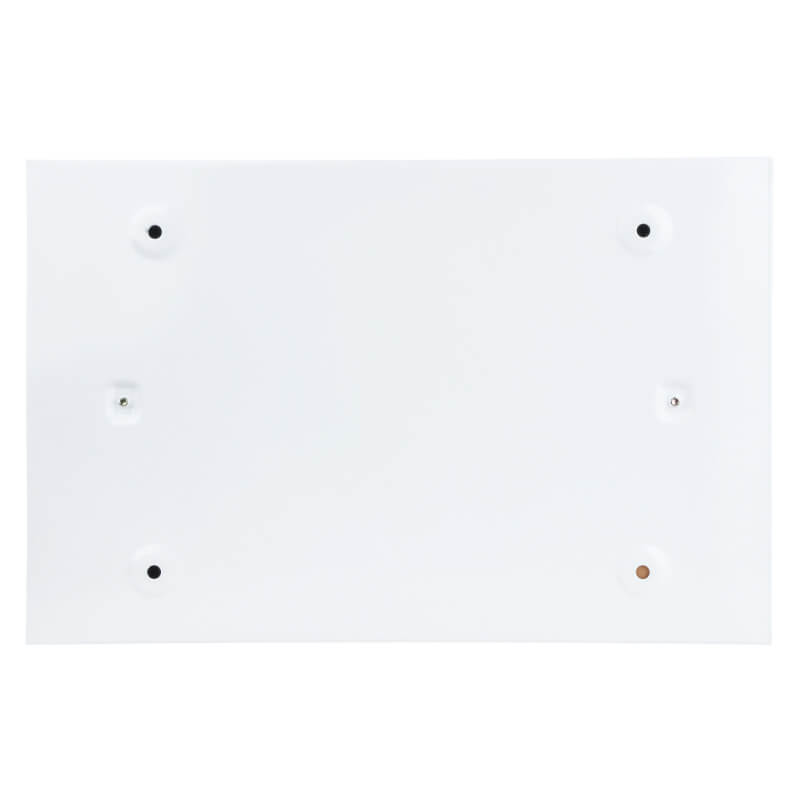

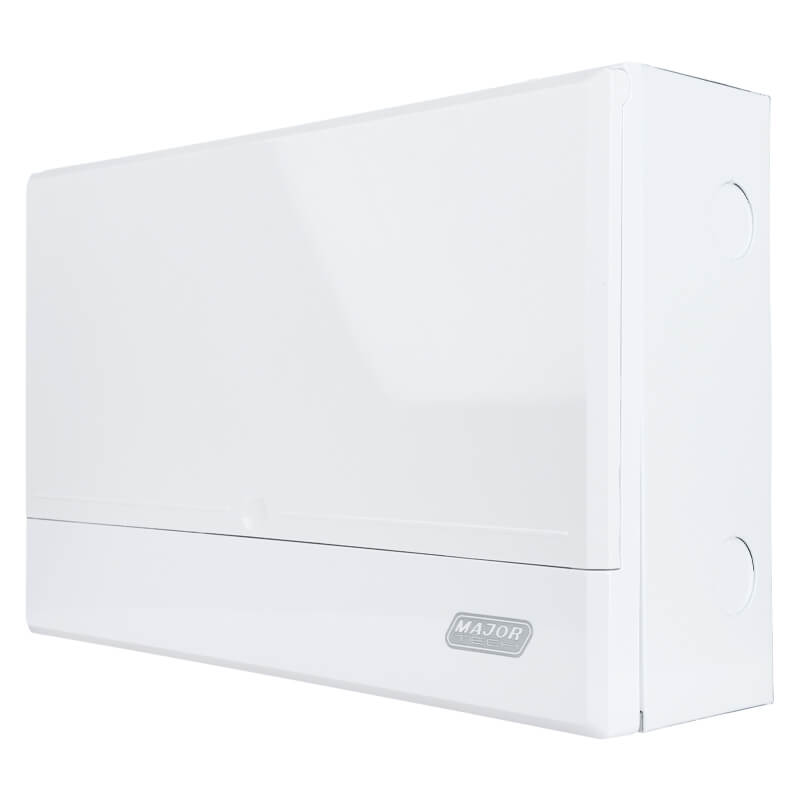

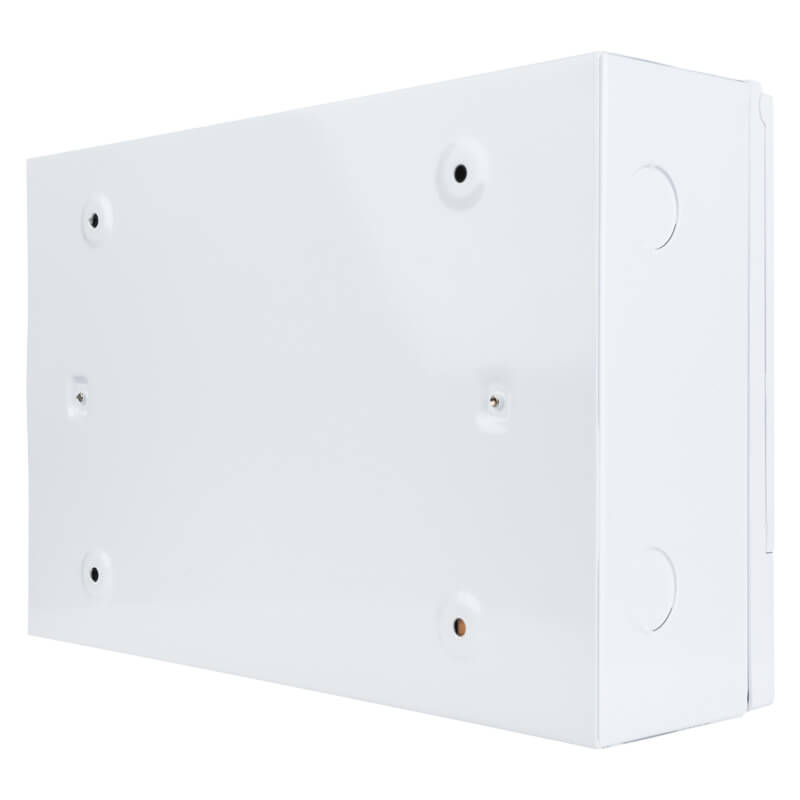

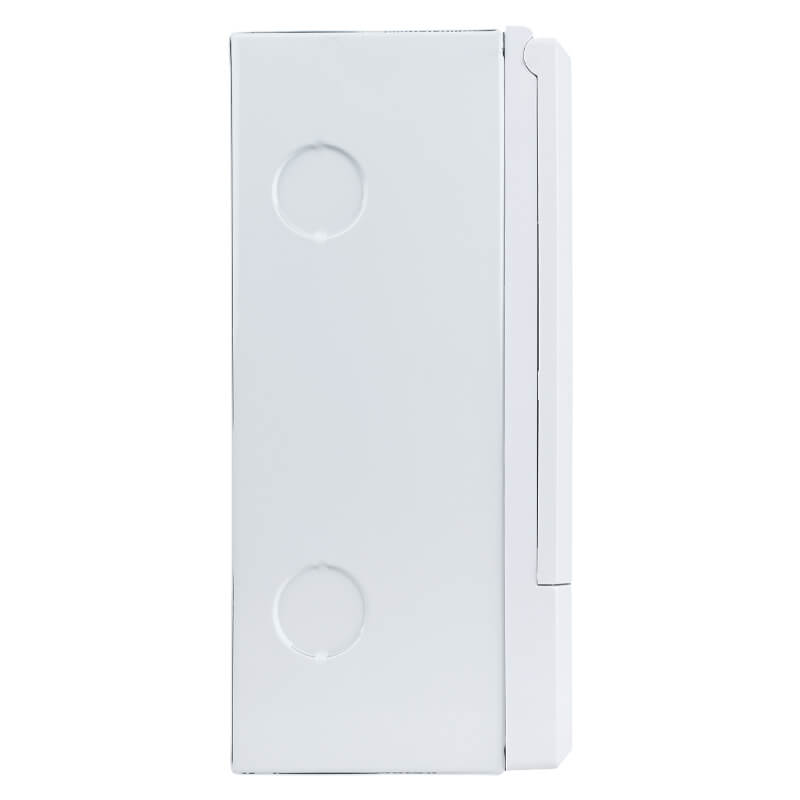

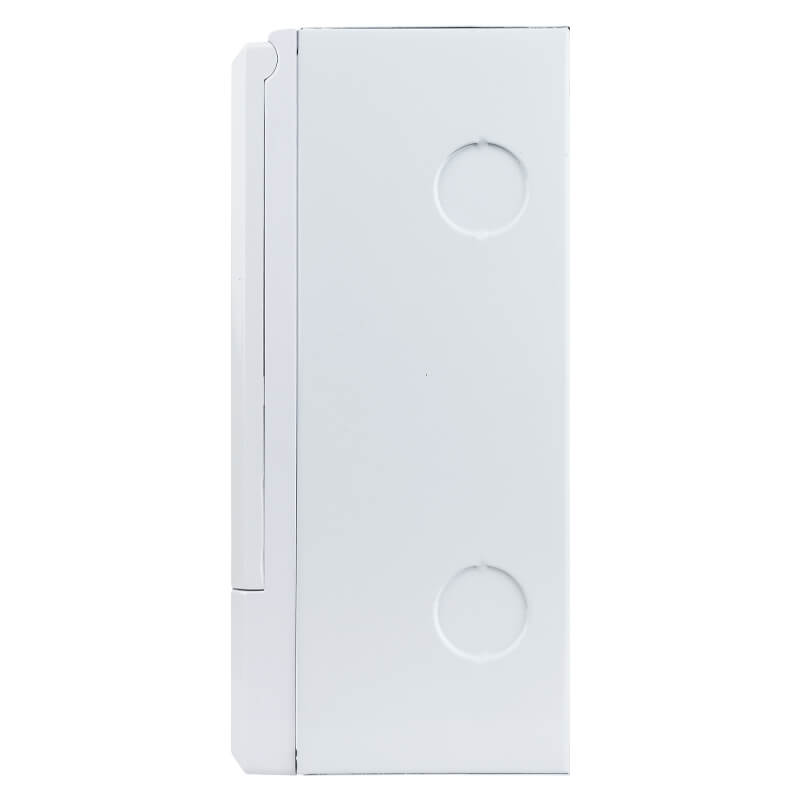

The VBM1114SM is an IP20-rated 11-14 Way Surface Mount distribution board, with a compact 1-row height, it can accommodate up to 14 individual 18mm modules, providing an efficient and reliable electrical distribution solution for your space. Crafted from high-quality, powder-coated iron, the durable metal tray ensures strength and longevity. Conforming to South Africa compliance standards IEC61439 and IEC61000, the VBM1114SM distribution board is equipped with an Earth & Neutral Bar, offering enhanced safety and reliability in electrical installations. The adjustable DIN rail and front cover simplify the installation process, ensuring a level and secure setup. Additionally, included distribution board labels make circuit identification easy, helping to maintain a tidy and organised electrical system. This VBM1114SM distribution board is the ideal choice for those seeking a robust, efficient, and organised electrical solution.

Specifications:

Function

Range

Dimensions

323 x 210 x 97mm

Knock Outs



Top

5x 20mm & 2x 25mm

Bottom

5x 20mm & 2x 25mm

Right Side

2x 25mm

Left Side

2x 25mm

Material



Cover

High Quality Polycarbonate Plastic (PC)

Tray

Metal for increased strength and durability

Earth/Neutral Bar

Copper

IP Rating

IP20

Warranty
